BTS DCR-300.


Produktie jaren 90

D-1 Digital video tape recorder / editor
Digital component video & audio in & out.
Uncompressed 8 bit 4:2:2 data recording.
PCM audio 4 x stereo channels
Playback time 94 minutes















Philips LDL-2010.


Produktie 1985.
Lineplex studio editing recorder.
Max recording 20 minutes on a 1/4 inch cassette.
Tape speed ( pal/secam ) 11.8 cm/s.
Frequency response luminance 3.6 MHz.
Frequency response chrominance 1.2 MHz.
Signal to noise ratio, luminance 46 dB, chrominance 46 dB.
Frequency response audio 50Hz - 15KHz.

De recorder is een produkt van Bosch. Bosch heeft dit systeem als QuarterCam op de markt gebracht. In 1986 zijn Bosch en Philips samen gegaan onder de naam BTS (Broadcast Television Systems)













Sony BVW-40P.

Produktie 1983-1989
Betacam / betacamSP playback
studio editing recorder
Bandwidth (50% Modulation)
Luminance: 25Hz to 4.0MHz +0.5/-6.0dB
Chrominace: 25 to 1.5MHz +0.5/-3.0dB
S/N Ratio  :
Luminance (Component IN/OUT): > 46dB
Chrominance: AM; > 49dB
PM; > 49dB (1.0MHz, LPF)

Tape Speed: 101.5mm/s
Playback time: 36 minutes maximun with BCT-30K
Power Consumption: 280W
 Mass: 38.7kg (85 lb 5 oz)












Sony BVW-75P / Ampex CVR-75.

Produktie 1987 - ?
BetacamSP studio editing rocorder
DMC (Dynamic motion control) allowing playback speed in the DT range to be memorised
Bandwidth (50% Modulation)
Luminance: 25Hz to 5.5MHz +0.5/-3.0dB
Chrominace: 25 to 1.5MHz +0.5/-1.5dB
S/N Ratio :
Luminance (Component OUT): > 46dB
Chrominance: > 48dB (SC Trap off) K-factor (2T-pulse): < 3%
Longitudinal Audio :
Frequency Response: 50Hz to 15kHz +1.0/-2.0dB
 S/N Ratio: >68dB
FM Audio Performance :
Frequency Response: 50Hz to 20kHz +0.5/-2.0dB
S/N Ratio: >72dB
 Playback time: More than 100 mins with BCT-90MLA
Power Consumption: 225 Watt













Sony BVW-70.

Produktie 1987 - ?
BetacamSP studio editing recorder
Bandwidth (50% Modulation)
Luminance: 25Hz to 5.5MHz +0.5/-3.0dB
Chrominace: 25 to 1.5MHz +0.5/-1.5dB
S/N Ratio :
Luminance (Component IN/OUT): > 46dB
Chrominance: > 48dB (SC Trap off) K-factor (2T-pulse): < 3%
Longitudinal Audio :
Frequency Response: 50Hz to 15kHz +1.0/-2.0dB
 S/N Ratio: >68dB
FM Audio Performance :
Frequency Response: 50Hz to 20kHz +0.5/-2.0dB
S/N Ratio: >72dB
 Playback time: More than 100 mins with BCT-90MLA
Power Consumption: 240 Watt













Sony BVW-65P.

Produktie 1987 - ?
BetacamSP studio editing player
DMC (Dynamic motion control) allowing playback speed in the DT range to be memorised
Bandwidth (50% Modulation)
Luminance: 25Hz to 5.5MHz +0.5/-3.0dB
Chrominace: 25 to 1.5MHz +0.5/-1.5dB
S/N Ratio :
Luminance (Component OUT): > 46dB
Chrominance: > 48dB (SC Trap off) K-factor (2T-pulse): < 3%
Longitudinal Audio :
Frequency Response: 50Hz to 15kHz +1.0/-2.0dB
 S/N Ratio: >68dB
FM Audio Performance :
Frequency Response: 50Hz to 20kHz +0.5/-2.0dB
S/N Ratio: >72dB
 Playback time: More than 100 mins with BCT-90MLA
Power Consumption: 175 Watt













Sony DVW-A500P/Thomson TTV3452P.


Produktie 1993 - ?
Digital Betacam studio editing recorder.

Tape speed : Digital 96,7 mm/s analog 101,5 mm/s.
Digital record/playback max time : 124 minutes.
Analog playback max time : 100 minutes.
Mass : DVW-A500P 37 Kg, DVW-500P 35 Kg .
Dynamic tracking -1 to +3 times playback.











Sony DNW-A75P.

Produktie 1996 - ?
BetacamSX / betacamSP playback
studio editing recorder
Video : MPEG 4:2:2 Profile@ML compression.
Audio : 4 channels of 48 kHz 16 bit PCM audio.
Video inputs : SDI, component, composite.
Video outputs : SDI, component, composite.
Playback time : 194 minutes BetacamSX / 100 minutes BetacamSP.

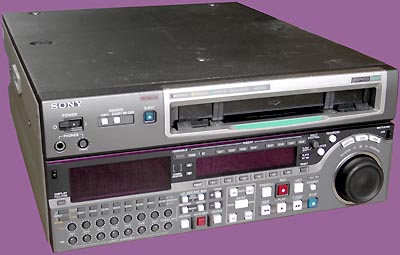

Sony MSW-M2000P.

MPEG IMX-Digital Betacam (MSW-M2000/M2000P)-Betacam SX-Betacam/Betacam SP.
MPEG IMX playback time : Max. 184 (525)/224 (625) min with BCT-184MXL cassette.
Digital audio performance : Sampling frequency, 48 kHz (synchronised with video)
Quantization, MPEG IMX: 16 or 24 bits/sample (selectable) Betacam SX: 16 bits/sample Digital Betacam: 20 bits/sample (MSW-M2000/M2000P. Digital video performance : Sampling frequency, Y: 13.5 MHz, R-Y/B-Y: 6.75 MHz.
Quantization, MPEG IMX/Betcam SX: 8 bits/sample, Digital Betacam: 10 bits/sample, Digital input to analog component output, Analog component input to analog component output (MPEG IMX record/playback), A/D and D/A quantization: 10 bits/sample Bandwidth: Y: 0 to 5.75 MHz +0.5/-2.0 dB, R-Y/B-Y: 0 to 2.75 MHz +0.5/-2.0 dB S/N ratio: 52 dB or more K-factor (2T pulse): 1% or less LF non-linearity: 3.0% or less.













Sony PVW-2800P.

Produktie 1991 - ?
BetacamSP studio editing recorder
Bandwidth (50% Modulation)
Luminance: 25Hz to 5.5MHz +0.5/-4.0dB
Chrominace: 25 to 2.0 MHz +0.5/-3.0dB
S/N Ratio :
Luminance (Component IN/OUT): > 48dB
Chrominance: > 48dB ,K-factor (2T-pulse): < 2%
Longitudinal Audio :
Frequency Response: 50Hz to 15kHz +1.5/-3.0dB
 S/N Ratio: >68dB
 Playback time: More than 100 mins with BCT-90MLA
Power Consumption: 150 Watt













Sony DSR- 2000.


DVCAM - DV studio editing recorder
Tape speed : 28.193 mm/s (DSR-2000) 28.221 mm/s(DSR-2000P)
Recording/playback time :
Using PDV-184ME standard-size cassette: 184 minutes or less
Using PDVM-40ME mini-size cassette: 40 minutes or less
S/N : Composite I/O (Y):53 dB or more
S-Video I/O (Y): 55 dB or more
Component I/O (Y): 55 dB or more
Digital input/output
i.LINk (When using DSBK-190 i.LINK/DV input/output Board)
Component video in/out Y/R–Y/B–Y
S VIDEO IN/OUT DIN 4-pin 1 Analog video output
Video composite output 1, 2, 3 (SUPER) BNC type 2
Video composite input VIDEO IN BNC type 2
SDI in/out - SDTI (QSDI) in/out - Analog audio in/out XLR
Power Consumption: 110 Watt

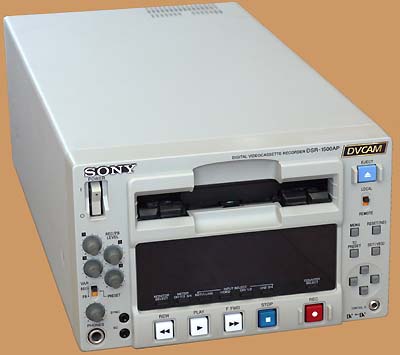

Sony DSR-1500AP.

DVCAM Compact Player/Recorder
RS-422, 6-Pin i.Link I/O, DVCPRO Playback
Inputs : composite, component, S-video, SDI, SDTI, DV in.
Inputs : composite, component, S-video, SDI, SDTI, DV out.
Recording/playback time :
Using PDV-184ME standard-size cassette: 184 minutes or less
Using PDVM-40ME mini-size cassette: 40 minutes or less












Sony BVU-200P.

Produkie begin jaren 80
High band U-matic
Horizontal resolution:
260 lines (monochrome)
Signal-to-noise ratio:
Better than 46dB (colour/monochrome)









Sony BVU-800P.


Produkie 1982-1989
High band U-matic
Horizontal resolution:
260 lines (monochrome)
Signal-to-noise ratio:
Better than 46dB (colour/monochrome)
Power requirements:
AC 100-120 / 220-24OV, +- 10% (selectable), 48 to 64Hz +- 10%
Weight:
Approx. 37 kg (81 lb 9 oz)
Recording and playback time:
60 min (with Sony KSP-60 U-matic videocassettes)









Sony BVU-850P.

Produkie 1985-1990
High band U-matic / U-maticSP
Horizontal resolution:
SP mode: 300 lines (colour/monochrome)
Conventional mode: 260 lines (colour/monochrome)
Signal-to-noise ratio:
SP mode:
Better than 46dB (colour)
Better than 49dB (Y)
Better than 46dB (AM)
Better than 41dB (PM)
Conventional mode:
Better than 47dB (colour/monochrome)












Sony BVU-950P.

Produktie 1987 - ?
High band U-matic / U-maticSP
Horizontal resolution:
SP mode: 300 lines (colour/monochrome)
Conventional mode: 260 lines (colour/monochrome)
 Signal-to-noise ratio:
SP mode:
Better than 46dB (colour)
Better than 49dB (monochrome)
Conventional mode:
Better than 47dB (colour/monochrome)
 Power consumption:
160W (with the BKU-903 and BKU-905 installed)
Weight:
Approx. 28 kg (61 lb 12 oz)










Sony BVV-1APS.

Produkie BVV-1PS 1982-1984, BVV-1APS 1984-1988.
De APS is een verbetere versie met tijdcode in en uitgang. Deze recorder kan alleen opnemen, weergave is niet mogelijk. De camera ingang is alleen geschikt voor camera's met een component uitgang. De camera's die bij deze recorder horen, de BVP-1P, BVP-3P, BVP-30P en de BVP-150P.








Sony BVW-20P.

Produktie midden jaren 80
Betacam / betacamSP playback
Portable field player.
Bandwidth (50% Modulation)
Luminance: 25Hz to 4.0MHz +0.5/-6.0dB
Chrominace: 25 to 1.5MHz +0.5/-3.0dB
Playback time: 36 minutes maximun with BCT-30K








Sony BVW-21P.

Produktie midden jaren 80
Betacam / betacamSP playback
Portable field player.
Bandwidth (50% Modulation)
Luminance: 25Hz to 4.0MHz +0.5/-6.0dB
Chrominace: 25 to 1.5MHz +0.5/-3.0dB
Playback time: 36 minutes maximun with BCT-30K










Sony BVW-25P.


Produktie midden jaren 80
Betacam / betacamSP playback
Deze recorder  kan alleen standaard betacam opnemen, opnemen op SP mode kan niet. sommige recorders zijn later wel geschikt gemaakt voor afspelen op SP mode. De ingangen zijn geschikt voor component en composite video. Er kan ook een externe TBC op deze recorder aangesloten worden.
Bandwidth (50% Modulation)
Luminance: 25Hz to 4.0MHz +0.5/-6.0dB
Chrominace: 25 to 1.5MHz +0.5/-3.0dB
Playback time: 36 minutes maximun with BCT-30K










Thomson TTV-3535P.
Sony BVW-35P.

Produktie 1987 - ?
BetacamSP portable recorder
Bandwidth (50% Modulation)
Luminance: 25Hz to 5.5MHz +0.5/-3.0dB Chrominace: 25 to 1.5MHz +0.5/-1.5dB
Longitudinal Audio :
Frequency Response: 50Hz to 15kHz +1.0/-2.0dB
 S/N Ratio: >68dB
FM Audio Performance :
Frequency Response: 50Hz to 20kHz +0.5/-2.0dB
S/N Ratio: >72dB
Playback time: 36 minutes maximun










Sony BVW-50P.

Produktie jaren 90.
BetacamSP portable recorder
Bandwidth (50% Modulation) metal tape
Luminance: 25Hz to 5.5MHz +0.5/-3.0dB Chrominace: 25 to 1.5MHz +0.5/-3.0 d.
Longitudinal Audio metal tape :
Frequency Response: 50Hz to 15kHz +1.5/-3.0dB
 S/N Ratio: >62dB
FM Audio Performance metal tape :
Frequency Response: 50Hz to 20kHz +0.5/-2.0dB
S/N Ratio: >68dB
Playback time: More than 100 mins with BCT-90MLA










Sony DVW-250P.

Portable Digital Betacam recorder.
Power requirements 12 V DC +5.0 V/–1.0 V
Power consumption Approx. 28 W.
(with CONFI switch at OFF, SDI OUT setting at OFF) 39 W maximum.
Unit alone: approx. 6.6 kg. With battery pack and small cassette: approx. 7.7 kg.
Recording/playback time : Using BCT-D124L: maximum 124 minutes,
Using BCT-D40 : maximum 40 minutes.










Sony J-1 compact player.

Power requirements : AC 100 V to 240 V, 50/60 Hz, 50 Watt
Playback time : BetacamSX max. 194 min.
Playback time : BetacamSP Max. 90 (525 mode)/105 (625 mode) min.
Analog composite output : BNC (x1), Pin Jack (x1), 1.0 Vp-p, 75 Ohm.
S-video output : Mini DIN 4-pin (x1),Y: 1.0 Vp-p, C.0.286 Vp-p burst, 75 Ohm
Analog component output (with optional BKJ-1 : BNC (x3), Y: 1.0 Vp-p, R-Y/B-Y: 0.7 Vp-p, 75 Ohm











Thomson TTV-3901P.
Sony BVU-110P.

Produkie begin jaren 80
High band U-matic
Horizontal resolution: 260 lines
Video S/N ratio : 45 dB
Tape speed : 9,53 cm/sec
Weight : 9,1 Kg
Power : 12 Volt 13 Watt
Battery pack : BP-90 (Ni-Cd)
Recording and playback time:
20 min (with Sony KCS-20 U-matic videocassettes) 3/4 inch










Sony BVU-150P.


Produkie jaren 80
High band U-matic / U-maticSP
Horizontal resolution:
SP mode: 300 lines (colour/monochrome)
Signal-to-noise ratio:
SP mode:
Better than 45dB (colour)
Conventional mode:
Better than 45dB (colour)
Recording and playback time:
20 min (with Sony KSP-20 U-matic videocassettes)

Power requirements:
DC 11.0 to 14.0V, Ni-cad battery pack BP-90.









Panasonic AU-65-E.


Produkie 1988 - ?.

MII ( M2 ) video systeem.
Recording System: 4 rotating heads; 2-track helical scanning.
Tape: 1/2" Metal Particle (MP) Tape.
Recording Time: 90 minutes with AU-M90L.
Component Y: 25Hz~5.5MHz +1.0/-4.0dB
C (PB, PR) 25Hz~1.5\MHz +0.5/-3.0dB
S/N Ratio:
Component Y: Better than 49dB
Composite Y: Better than 47dB
C (AM, PM): Better than 52dB
Linear audio (CH1/CH2)
Frequency Response: 50~15,000Hz +2.0dB/ -3.0dB
S/N Ratio: Better than 56dB (Dolby NR Off)
(at 3% distortion): Better than 74dB (Dolby NR On)
FM audio (CH3/CH4)
Frequency Response: 20~20,000Hz +1.0/-2.0dB
Dynamic Range: More than 85dB (A WTD)








Panasonic AU-650B.





MII ( M2 ) video systeem with auto tracking.
Recording System: 4 rotating heads; 2-track helical scanning.
Tape: 1/2" Metal Particle (MP) Tape.
Recording Time: 90 minutes with AU-M90L.
Component Y: 25Hz~5.5MHz +1.0/-4.0dB
C (PB, PR) 25Hz~1.5\MHz +0.5/-3.0dB
S/N Ratio:
Component Y: Better than 49dB
Composite Y: Better than 47dB
C (AM, PM): Better than 52dB
Linear audio (CH1/CH2)
Frequency Response: 50~15,000Hz +2.0dB/ -3.0dB
S/N Ratio: Better than 56dB (Dolby NR Off)
(at 3% distortion): Better than 74dB (Dolby NR On)
FM audio (CH3/CH4)
Frequency Response: 20~20,000Hz +1.0/-2.0dB
Dynamic Range: More than 85dB (A WTD)

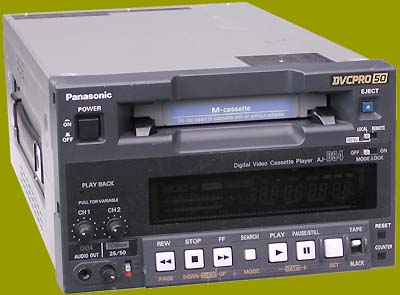

Panasonic AJ-D94E .


DVCPRO50 Office Viewer (PAL:625)
Carryable DVCPRO50/DVCPRO player.
The AJ-D94 accepts both M and L cassette tapes and
provides up to 184 minutes of playback time. Also
featuring a 9-pin remote control terminal and mode lock
switch, the AJ-D94 is ready for a range of uses,
including video displays and presentations.
4:2:2 Component Video.







Folders en catalogi









Naar boven
